Product Name:

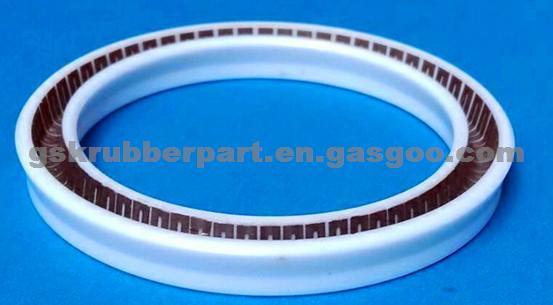

PTFE Seal With Spring
Product Attribute:
Material:PTFE,PTFE carton steel
Standard or Nonstandard:Standard
Pressure:60Mpa
Temperature:-45-200℃
Speed:15m/s
Application:
spring- energized, pressure-assisted sealing device consisting of a PTFE (or other polymer) seal partially encapsulating a corrosion-resistant metal spring energizer.
Product Description:
PTFE/teflon seal with spring:
1.Material: PTFE and spring
2.Size: standard or customized
3.Spring style: U shaped spring(Type 400),Round wire spring (Type APS),O shaped spring (Type 103)
4. Application: piston, rod, piston & rod, static or dynamic applications
5. the Spring Energized PTFE Seal is a spring- energized, pressure-assisted sealing device consisting of a PTFE (or other polymer) seal partially encapsulating a corrosion-resistant metal spring energizer.
Spring energized PTFE/teflon seal application range :
Pressure [MPa] 60
Temperature [° C] -45...+200
Sliding speed[m/s] 15
Medium: Mineral oil based fluids, barely flammable hydraulic fluids, water, air and others.
PTFE spring energized seal information:
|
Item name
|
spring energized PTFE/teflon seal
|
|
Application
|
used for linear or reciprocating rod and piston sealing applications, for rotating shafts as rotary seals, and for static and face sealing applications. Radial Seals in Static Service. Radial Seals in Reciprocating
|
|
Feature
|
Spring Energized Seals Features include: low friction with no stick-slip, minimal break-out force and high wear-resistance. Unlimited shelf life and in designs for rod or pistons, subject of either static or dynamic applications.
|
|
|
